Design Overview

Epic supports a wide variety of data exchange technologies. This guide provides an overview of design considerations and the different ways to plan your connection to organizations using Epic.

What Should I Consider When Designing My Data Exchange?

Due to the vast breadth of standards and types of APIs and interfaces a developer may wish to use, there are many factors to consider when determining the best way for you to exchange data with Epic. The sections below cover the most common considerations when designing a connection, while the Case Studies section toward the end of this document provides examples for applying these considerations to some sample scenarios.

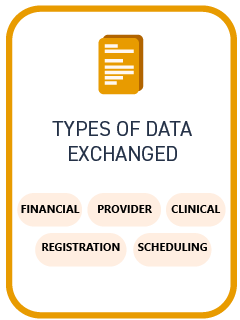

Types of Data to Exchange

Before you begin designing your connection, you must first understand what data you plan to exchange with Epic. Start by defining the discrete types of data your app will work with, and define a scope for the level of detail required within that data set. For example, you may need to exchange medication information. You should then more specifically define data elements you need within that data type, such as dosage information, RxNorm codes, etc.

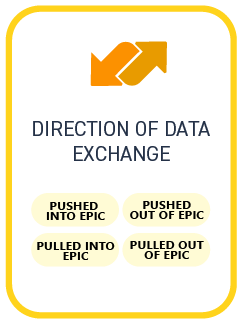

Direction of Data Exchange

After you have defined the data you need to exchange, determine the direction of that exchange. For example, transferring data from Epic to clinical registries may only need to read data from Epic. Meanwhile, a connection that results lab orders will need to write data back to Epic. Make sure you understand which data types need to be read out of Epic and which need to be written into Epic.

When writing data to Epic, additional caution should be taken to ensure that the data written is accurate, complete, and documented on the correct patient. Improper use of these technologies may result in patient safety and data integrity concerns.

Workflows Using Data Exchange

Next, determine when and how this data exchange should occur. Does data exchange occur based on a specific event, such as a clinician placing an order or a patient being discharged? Does data exchange occur on a schedule, such as a nightly data extract? Does data exchange occur when a user decides to launch your app? Some methods of data exchange might only be applicable in specific workflows or when specific events occur. Before determining your appropriate data exchange method, you must first define the workflows in which you plan to exchange data with Epic.

Data Exchange Method

Epic recommends using industry standards for data exchange whenever possible. The most appropriate standard for your use case may vary. For example, NCPDP standards may be the most appropriate method to exchange of pharmaceutical data, while Digital Imaging and Communications (DICOM) standards may be the most appropriate method to exchange medical images.

Once a data set, direction of data exchange, and workflows in which that exchange should occur are defined, you need to determine which standards or specific technologies are the most applicable.

You can find information about the standards-based interfaces, APIs, and other data exchange methods that Epic currently supports by browsing the API and Interface specifications pages of open.epic.

Here is a high-level overview of common use cases for various data sharing technologies:

In some cases, industry standards may not fully meet your needs. Epic has developed Epic-specific data exchange methods that extend the capabilities of industry standards for some use cases. For example, some Epic-specific web services are described on the Web Services page of open.epic. Other options may be available through our Vendor Services offering.

Security Mechanisms

Due to the sensitive nature of healthcare data, data exchange technologies generally require various forms of authentication, authorization, and security. Some connections may use an SSO solution, such as SMART on FHIR, for authentication using the OAuth 2.0 framework for authorization while others rely on security mechanisms like client certificates or TCP/IP connections. Consider what authentication mechanisms are supported by the data exchange methods you have selected for your use case. Applications with some form of user interface generally require an authentication mechanism to authenticate the specific user gaining access to that data, while system-to-system connections are less likely to require user-based authentication.

OAuth 2.0 is the preferred method of security for apps in which Epic users interact with data. TCP/IP connections and TLS/SSL certificates are common security mechanisms for system-to-system connections.

Where Do I Go from Here?

Now that we've gone through the basics of which technologies to use for your data exchange with Epic, you can focus on turning those recommendations into a working connection.

Check out our step-by-step developer guide for next steps in creating a connection to a customer environment.

For a brief overview of how to work with an Epic Community Member to develop your product's connection to Epic, see our Strategies to Effectively Collaborate page.

Case Studies

Now that we've talked about the process, you may be wondering how to apply that logic to your own proposed method of data exchange. This section provides some example scenarios for how you might apply this document's logic to your own decision-making process.

Case Study A: Scheduling

This example was last reviewed on December 15, 2022.

In this scenario, your organization works with patients who would like to schedule appointments at Epic clinics and facilities. You'd like to be able to view a patient's upcoming appointments, schedule new appointments, and cancel existing appointments.

Types of Data to Exchange

Your organization is only interested in basic patient information and appointment related data. This can help you determine potentially applicable technologies. Now we can look at the different data exchange technologies that support your desired use.

• FHIR APIs
  • Appointment $find
  • Appointment $book
  • Schedule.Read
  • Slot.Read
  • Appointment.Read
• HL7v2 Interfaces
  • Outgoing Appointment Scheduling
  • Incoming Appointment Scheduling
• Additional API technologies
  • If you have use cases that do not seem to be covered with the technologies above, contact Vendor Services to determine if there are additional technologies available that fit your use case.

In this step, you'll also want to consider individual data elements that your connection relies on. For appointments this may be information about the patient, provider, visit type, department, date and time. Some data exchange technologies may only support certain data fields or only provide limited details about the field. Making a comprehensive list of all data elements your application requires can help you determine whether or not a specific data exchange technology meets your needs.

Direction of Data Exchange

For this connection, your organization would like to read a patient's current appointments from Epic, and write new appointments, cancellations, and reschedules into Epic. Consequently, the direction of data exchange varies. In this step, you may also want to consider whether this reading and writing of data is initiated by your system or by Epic.

For retrieving a patient's upcoming appointments, you have to decide if you want to retrieve a schedule from Epic, or be notified of schedule changes so that you can create your own schedule. A related question is: do you want to store upcoming appointments? Or do you want to retrieve upcoming appointments only when a patient asks? If you want to create the schedule, and only be notified of changes to the schedule, HL7v2 interfaces are a good choice for proactive notifications. If you want to retrieve a complete picture, or appointments only when a patient asks, then querying data through APIs allows for this flexibility. You look at the FHIR APIs and don't see an appointment.search option to retrieve an upcoming appointment for which you don't know the FHIR ID. You contact Vendor Services, who investigates whether there are additional APIs that can retrieve upcoming appointment information for a patient.

You are looking to schedule and cancel appointments in Epic. However, you may need to query information from Epic first. APIs allow for querying of existing information like available slots and existing appointments if they aren't stored in your system. You see that appointment $find may be helpful for this use.

Workflows Using Data Exchange

Patients will interact with your web page to manage their appointments. You are most interested in allowing patients to view upcoming appointments and cancel appointments that are no longer needed. Your app provides a convenient way for patients new to an organization to schedule appointments. With the patient as the user, and desiring the ability to search for available slots, you would like to use APIs. Looking closer into Appointment $find you see that it is intended for a non-patient user and requires the customer to do significant build. You also do not see an API to cancel appointments, so you contact Vendor Services to help investigate whether additional APIs are available.

Security Method

Different APIs and interfaces have different security capabilities. In this scenario your app is controlled by the patient but any API calls or HL7 messages are secured on the backend.

A patient using your website may not have an Epic patient portal (MyChart) account, so they may not have any Epic credentials to facilitate single sign-on with your website. With APIs, you will support an OAuth 2.0 Client Credentials flow or basic authentication with a generic user for your app. This grants you an access token that can be used to authorize subsequent API calls.

For HL7 you use a TCP/IP connection rather than HL7v2 over HTTPS. Data transferred with HL7v2 won't rely on authentication, but rather relies on other security mechanisms to secure your data exchange.

Data Exchange Method

Now that you've analyzed the above sections, we can pull that information together.

You want to store your own schedule of appointments so you can send appointment reminders whether or not a patient logs into your portal. You opt to receive HL7v2 messages for appointment booking, cancellation, modification and for no shows so you can store this data in your own database. For scheduling new appointments, you decide to use additional API technologies available through Vendor Services. When a patient decides to book an appointment, you don't know what slots are available to book, so you decide to use APIs to query for appointment availability. Then, to book the appointment for the patient you decide to use APIs because the data fields returned by the availability API and required by the scheduling API match. You also decide to cancel appointments through APIs.

Case Study B: Reference Labs

This example was last reviewed on December 5, 2022.

In this scenario, your organization results labs for hospitals, some of which use Epic, and you'd like to be able to send lab orders and results back and forth between the two systems. How will you design your connection?

Types of Data to Exchange

The main groups of data types your organization is interested in are lab orders and lab results. This can help you limit down potential technologies. Now you can look at the different data exchange technologies that support these mechanisms:

• FHIR APIs
  • ServiceRequest (Order Procedure) for lab orders
  • Observation (Labs) for lab results
  • DiagnosticReport for lab results
• HL7v2 Interfaces
  • Outgoing Ancillary Orders interface for lab orders
  • Incoming Ancillary Results interface for lab results
• Additional APIs
  • Lab APIs which may be available through Vendor Services

In this step, you'll also want to consider individual data elements that you need. For labs, this may be information about the specimen, how it was collected, when it was received, etc. Say your lab also supports microbiology labs, where your application also needs to record sensitivity and isolate information. Some data exchange technologies only support certain data fields, so making a comprehensive list of all data elements your connection requires can help you determine whether or not a specific data exchange technology meets your needs.

Direction of Data Exchange

For this connection, your organization would like to read lab orders from Epic and write lab results into Epic. This means that the direction of data exchange varies depending on the type of data you're exchanging. In this step, you may also want to consider whether this reading and writing of data is initiated by your system or by Epic.

Looking at the lab ordering step of the workflow, you aren't sure when a lab order will be placed in Epic. Rather than continually querying Epic for lab orders, you would prefer that Epic send you the lab order each time one of these orders is placed. In that case, you want Epic to push this lab order data into your system. HL7v2 interfaces are great for this type of proactive messaging so you'll want to keep that in mind in your design.

Looking at the lab resultng step of the workflow, you do know when a lab is resulted in your system, so you should control when you send lab results back to Epic. This means that you'll push lab result back into Epic from your system. Many different technologies exchange lab results. However, you're looking to write this data, not read it. You see that Observation (Labs) does not support a Create interaction that would allow you to create this lab result in Epic. You contact Vendor Services, who informs you that there are no additional APIs that would allow you to write lab results back to Epic either. You do note that the HL7v2 Incoming Ancillary Results would allow you to write this data into Epic.

Workflows Using Data Exchange

This section is simple: you'd like to share data for lab ordering and resulting workflows. You're most interested in ordering workflow after the order has been signed and the resulting workflow before the lab has been resulted in Epic. Your app supplements these workflows by automating the delivery of orders and the receipt of lab results. This could replace an old workflow such as sending orders and results manually by fax.

Data Exchange Method

Now that you have analyzed the above sections, you can pull that information together.

For your app connection, it makes the most sense to use the Outgoing Ancillary Orders and Incoming Ancillary Results HL7v2 interfaces.

Security Method

Now that you've generally determined the data exchange technologies needed for your app, you'll also want to think about what, if any, authentication method is needed. Since this app is entirely system-to-system using HL7v2 interfaces and you use a TCP/IP connection rather than HL7v2 over HTTPS, your connection won't rely on authentication, but rather relies on other security mechanisms to secure your data exchange.
